xWDM type
DWDM
Channel number
8
| xWDM type | DWDM |
| Channel number | 8 |
| Supported channels | 25,26,27,28,29,30,31,32 |
| Multiplexer type | MUX/DEMUX |
| Connector type | LC/UPC |
| Length mm | 215 |
| Height mm | 20 |
| Depth mm | 213 |
| weight | 0,32 |
| Operating temperature | -5|70 |
| Transmission type | Duplex |
| Mounting type | Chassis |
| Chassis type | GBC Drawer |
| Insertion Loss | ˂3.5 dB |
| Return Loss | ˃45 dB |
8 channels Duplex DWDM Mux/Demux in „drawer”, 8 DWDM channels: 25-32
Duplex multiplexer with 8 DWDM ports
GBC Photonics has passive multiplexers which allow to increase capacity of optical cables by adding multiple transmissions. Thanks to top-notch DWDM filters multiplexers have low insertion loss and high channel isolation. Drawer housing allow to save space, using dedicated chassis we can place up to 4 drawer devices in 1U.
GPDMD080LULU2532NDSS Multiplexer allows to launch 8 transmissions in DWDM technology using a pair of fibers. Multiplexer has LC/UPC ports.
Ports

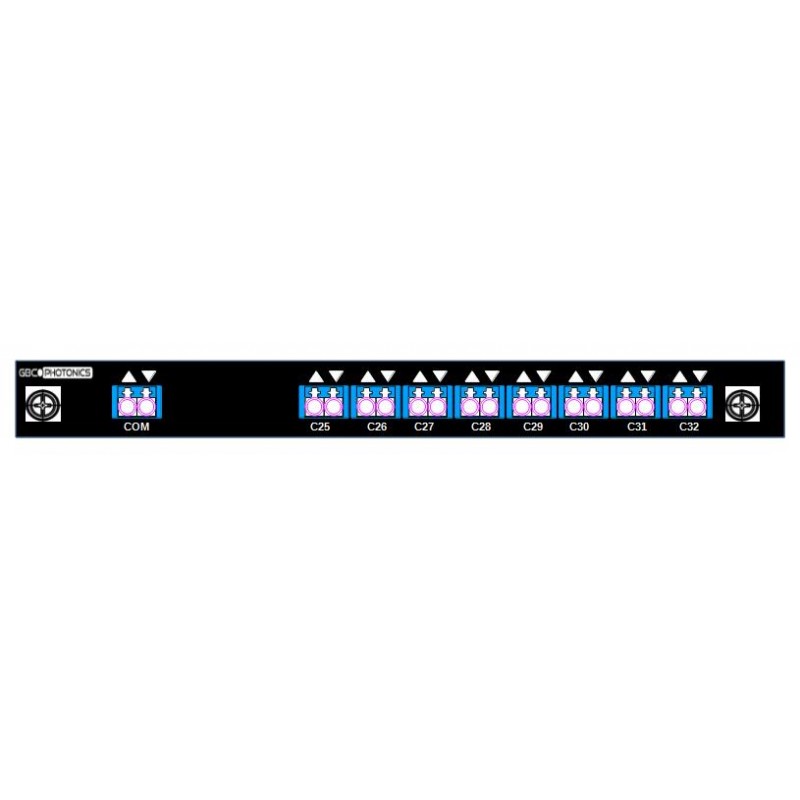

8 ports LC/UPC on DWDM channels 25 - 32, line port LC/UPC
Drawer housing
Drawer housing, ensure to save space and elegant design
