Number of client ports | 12 |
Length mm | 215 |
Height mm | 20 |
Depth mm | 213 |
weight | 0,32 |
Transmission medium | SingleMode |
Operating temperature | -40|85 |
Mounting type | Chassis |
Chassis type | GBC Drawer |
Client connector type | SC/APC |
Insertion Loss | ˂1,5 dB |
Return Loss | ˃45 dB |
ICS type | Breakout |
Number of MPO ports | 1 |
MPO connector type | 12F type A |

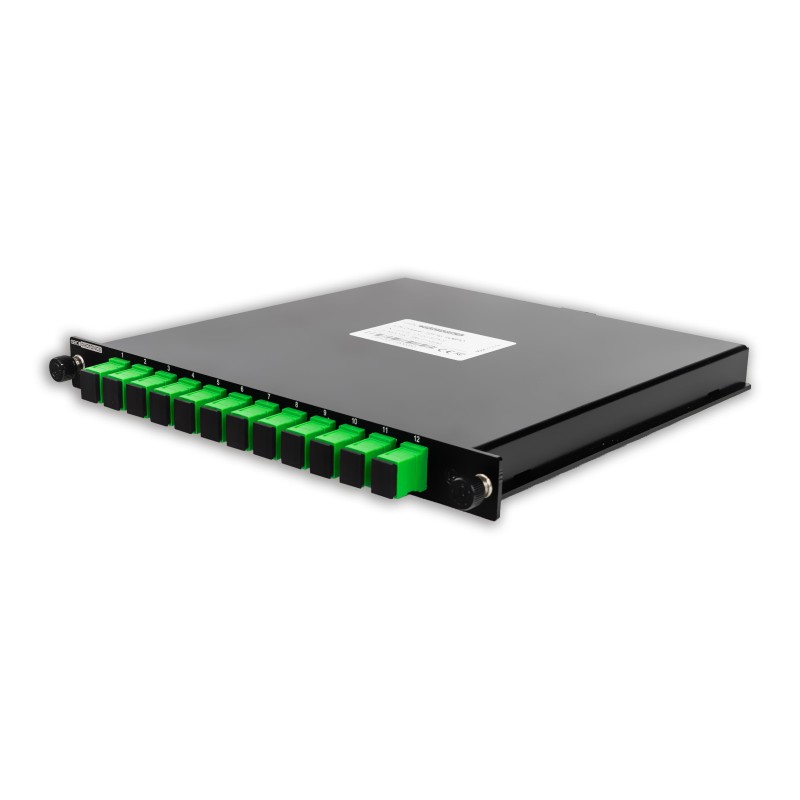

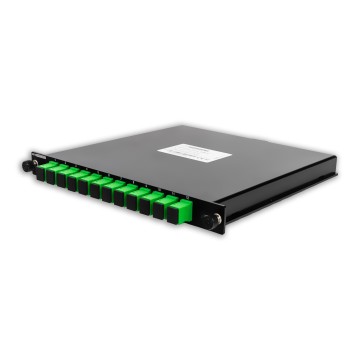

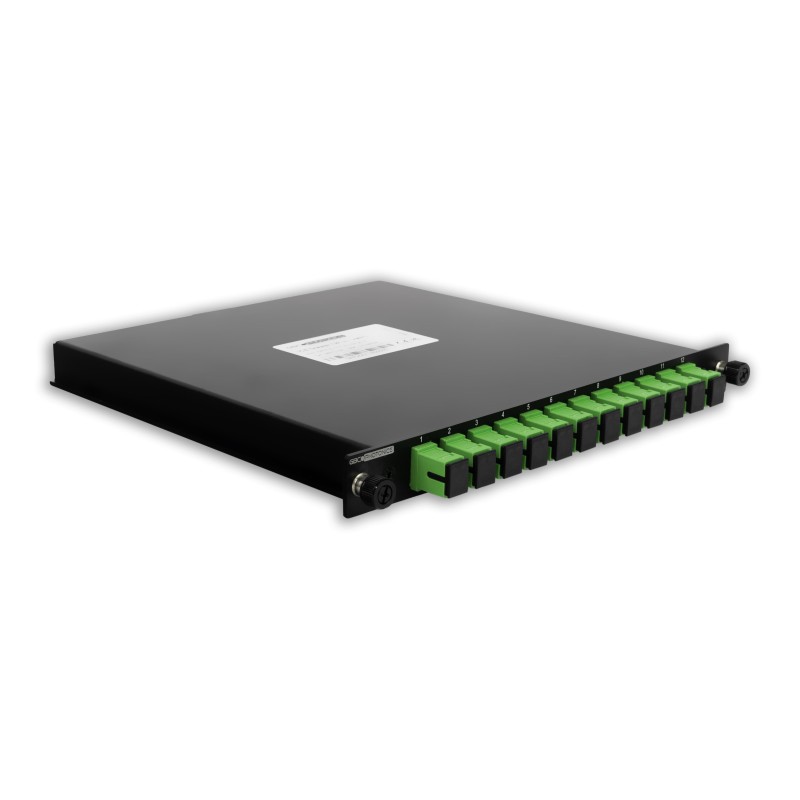

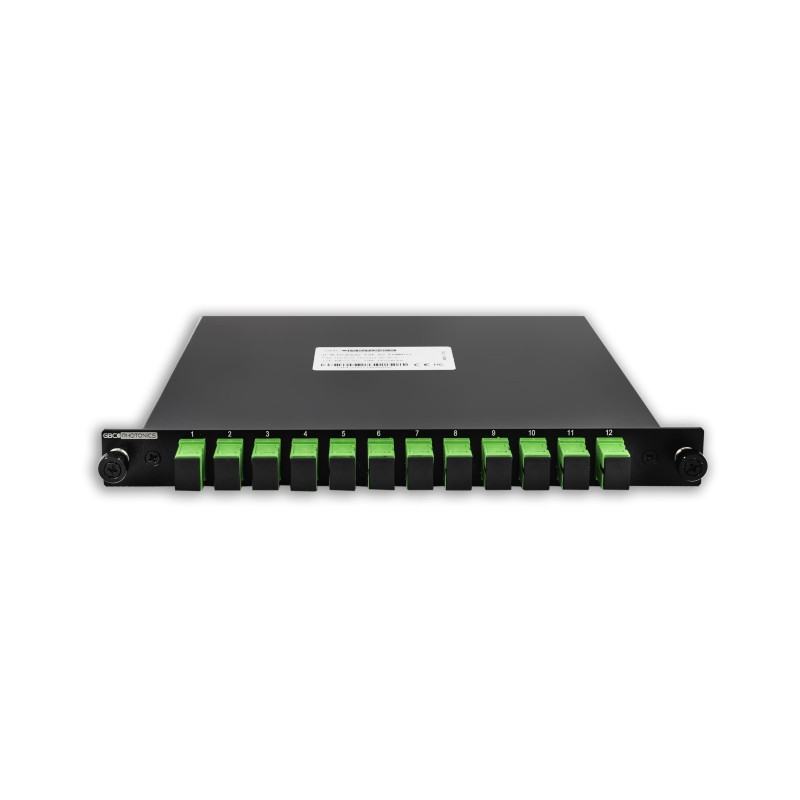

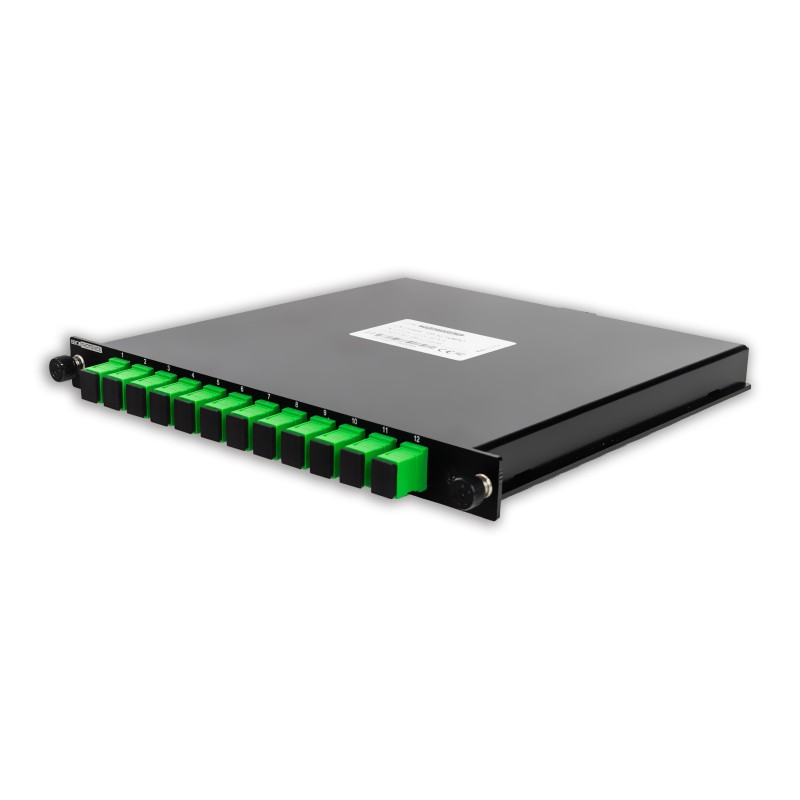

GPICS-1D12U-SCA-S
Singlemode breakout with SC/APC connectors
GBC Photonics has passive breakouts which allow to connect two different locations using MPO-MPO (Female) cable. Breakouts can be used as standard patch panel which reduces the installation time resulting from easy assembly and no need to splice optical fibers. Drawer housing allow to save space, by using dedicated chassis we can place up to 4 drawer devices in 1U.
GPICS-1D12U-SCA-S Breakout allows on connection of two separate locations using single MPO 12F cable with A polarization. Device has built-in single MPO port and 12 SC/APC. To connect two breakouts you need to use one singlemode 12F MPO cable.
Ports
1 singlemode MPO port, 12 SC/APC ports
Drawer housing
Drawer housing, ensure to save space and elegant design
