Number of client ports 20
Length mm 215
Height mm 20
Depth mm 213
weight 0,32
Transmission medium Singlemode / Multimode
Operating temperature -40|85
Mounting type Chassis
Chassis type GBC Drawer
Client connector type LC/UPC
Fiber type G657A1/OM4
Insertion Loss ˂1,5 dB
Return Loss ˃45 dB
ICS type Transceiver breakout
Type of breakout Single LR10/SR10 breakout
Number of MPO ports 1
MPO connector type 24F type A

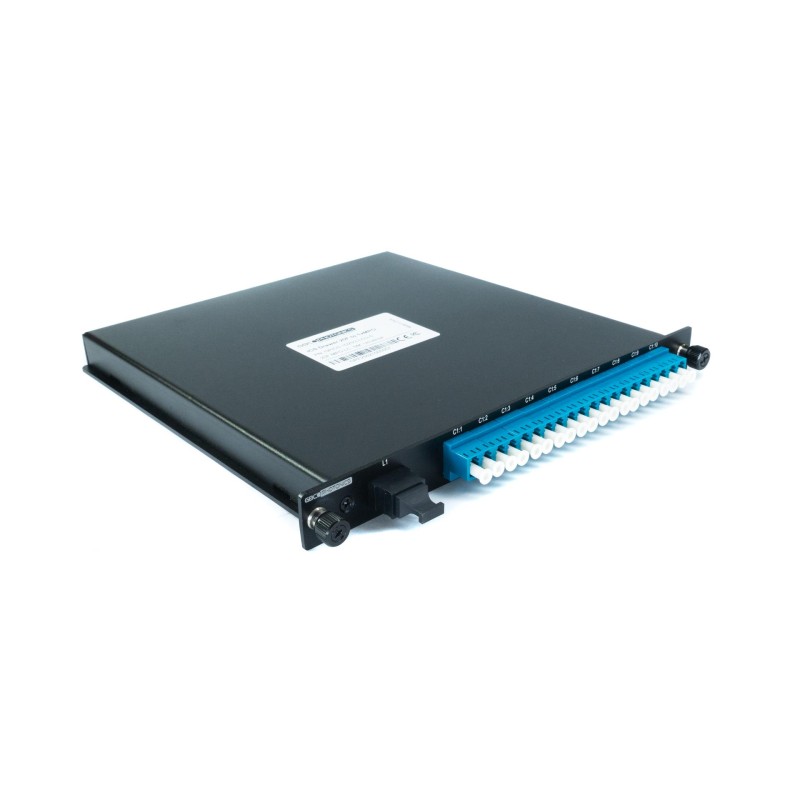

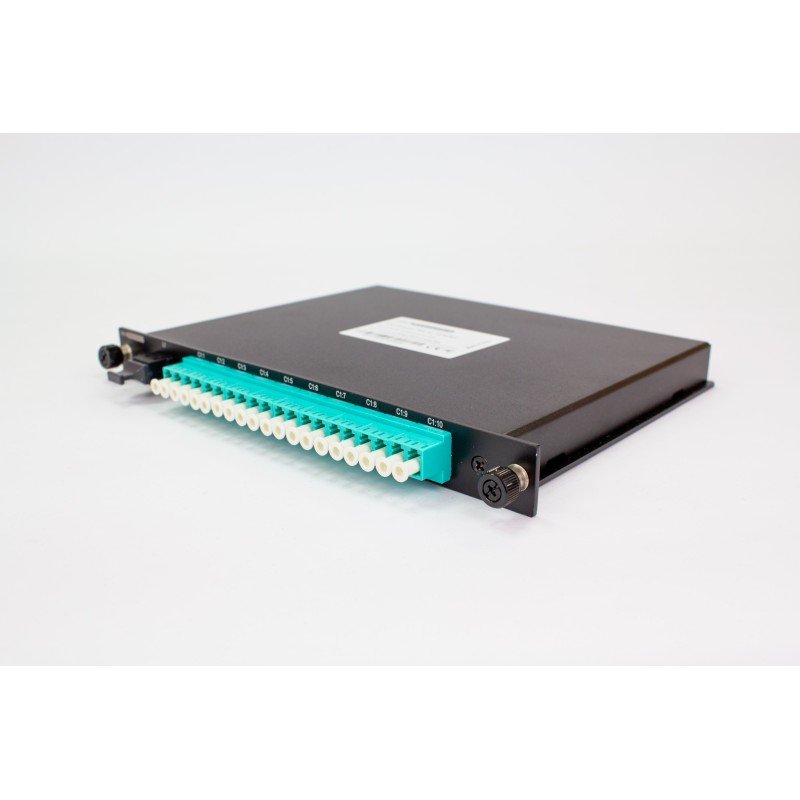

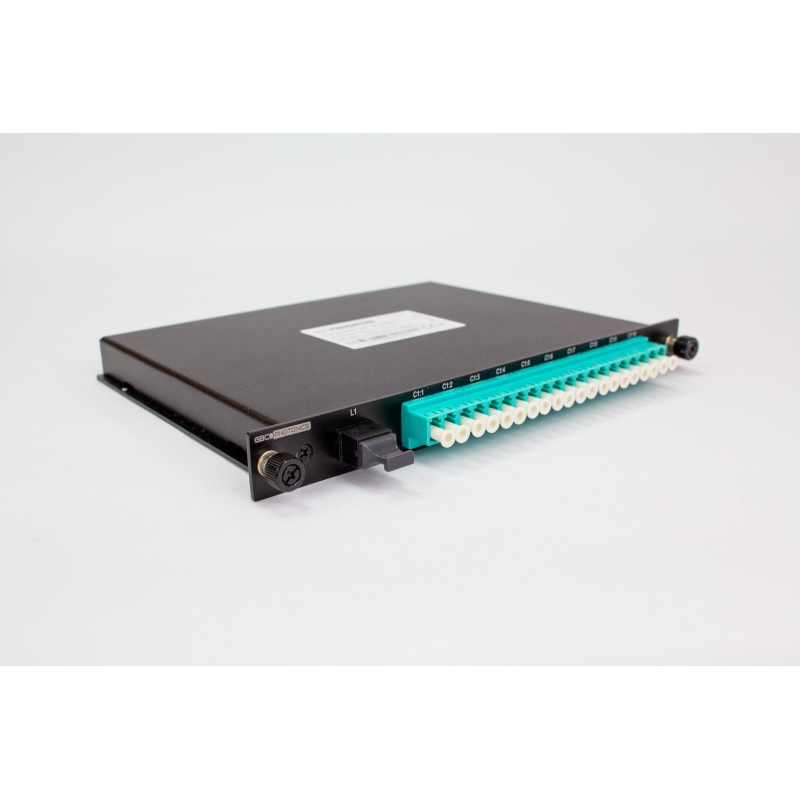

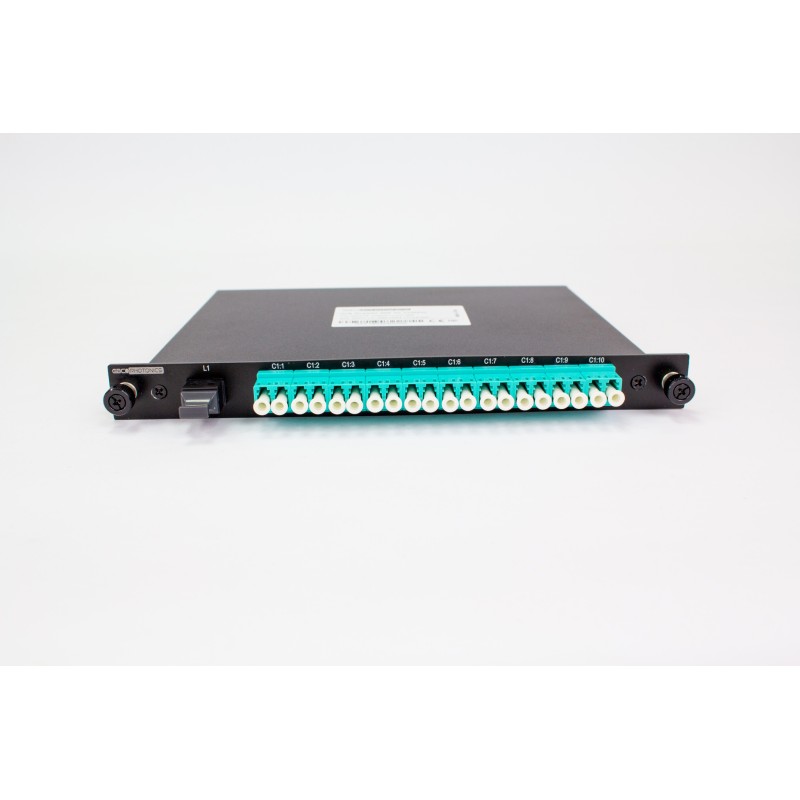

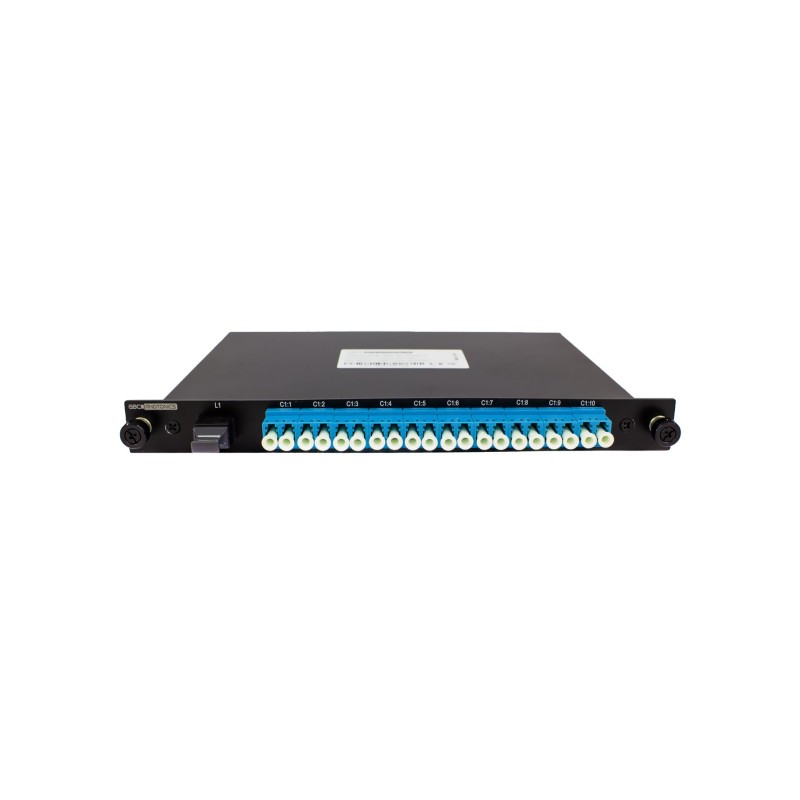

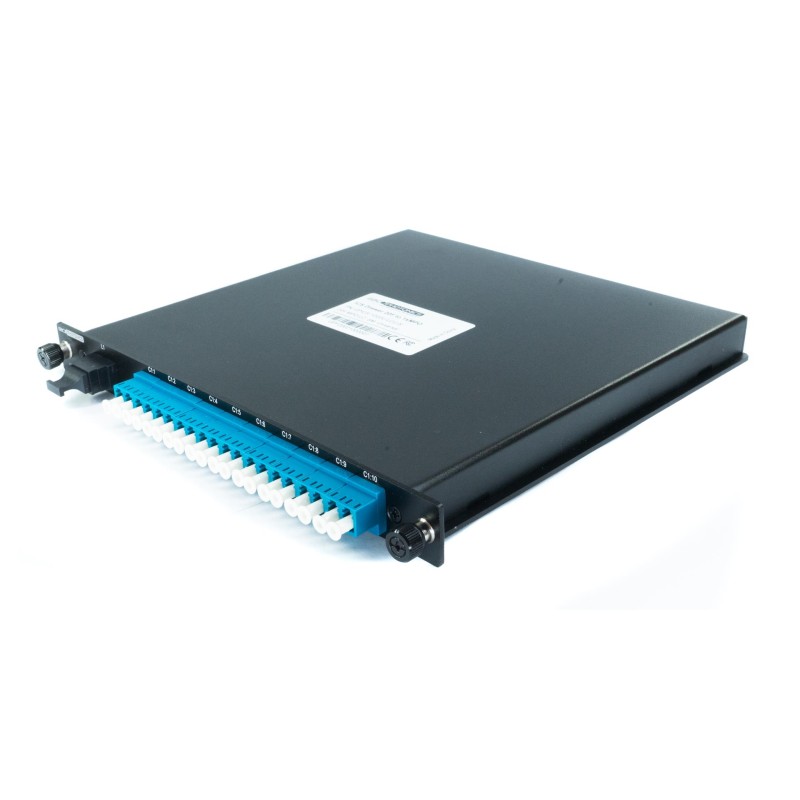

Interconnection System Drawer with 1xMPO 24 Fibers to 20xLC/UPC, LR10/SR10, Singlemode/Multimode

Singlemode breakout of LR10/SR10 transceiver

GBC Photonics has passive breakouts of MPO cables which allow to split 100G Ethernet transmission on ten separate 10G Ethernet links. Thanks to high quality breakouts have low insertion loss. Drawer housing allow to save space and by using dedicated chassi we can place up to 4 drawer devices in 1U.

GPICS-1D20U-LCU-S/M4 Breakout allows on passive separation of LR10/SR10 transmission on 10 individual links. Device has built-in single MPO port for 100G transceivers and 20 LC/UPC for 10G. Breakout allows to split one LR10/SR10 transmission which works on singlemode/multimode cable.

Ports

1 MPO port, 20 LC/UPC ports

Drawer housing

Drawer housing, ensure to save space and elegant design
