gptn-200g-1ch

Number of client ports	2
Client interface type	QSFP28
Length mm	196
Height mm	40
Depth mm	246
weight	0,5
Relative humidity	10\|90
Operating temperature	-10\|50
Mounting type	Active Chassis
Chassis type	Card
Management type	WEB,Telnet,SNMP
Regeneration type	3R
Number of line ports	1
Type of line port	CFP2
Supported protocols	100G Ethernet,OTU4
Auto Laset Shutdown (ALS)
Loopback
Link Fault Pass Through (LFPT)

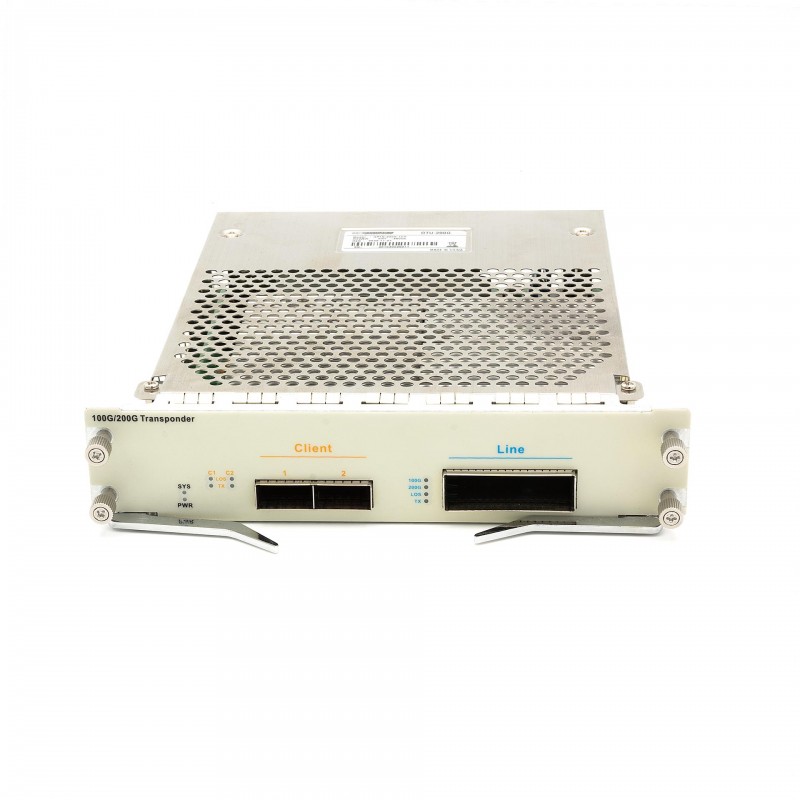

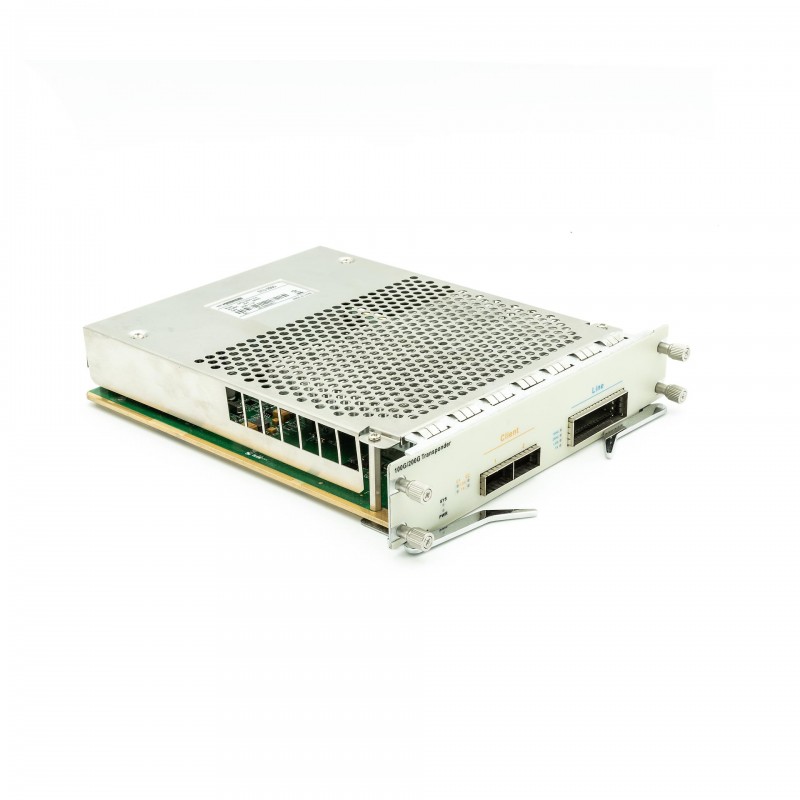

Dual slot transponder card with 2x QSFP28 ports and 1x CFP2 port, up to 2x 100GbE/OTU4 over 200G

Description
Ask about product

The 200G transponder in dual slot card

The GPTN-200G-1CH is a transponder that supports data rate 100G Ethernet and OTU4. Transponder aggregates two 100G transmissions to single 200G CFP2 interface. It also supports 3R regeneration (Reamplifying, Reshaping and Retiming). This transponder can be managed via WEB using dedicated chassis.

Ports

1 x CFP2 and 2 x QSFP28 ports

Housing

Two slots card

Features:

· Single transponder

· Support for 100G Ethernet and OTU4

· Built-in LED which helps identify the port status

· CFP2 can be switch between three modulation modes:

ü 16QAM

ü 8QAM

ü QPSK

· Also supports:

ü ALS – Auto Laser Shutdown

ü LFPT – Link Fault Pass Through

ü Loopback

· Compatible with LR4, SR4 and DWDM transceivers

· Can be installed in GBC Active chassis 1U, 2U and 5U

Colour your transmission

Advantages

· Allows SR or LR transceivers to be used in ports

· Support coherent transceivers on line site

· Offers full diagnostic of transceivers in line and client ports

· Maintains the separation of the customer’s network from DWDM

· With LFTP-enabled, transponder is “transparent” for L2 and L3 devices

3R Regeneration

GBC Active chassis

GBC Active chassis is a series of 1U, 2U and 5U devices in which you can install different types of cards. The chassis have a built-in management card, a fan tray and a redundant power supply.

The Simple Recode Device by GBC Photonics

Features:

· Three types of chassis

ü 1U 19” -> 3 slots

ü 2U 19” -> 7 slots

ü 5U 19” -> 18 slots

· Redundant AC and DC power supply in different combinations

· WEB GUI management

· Built-in fan tray

GBC Photonics Active devices platform

GBC Photonics offers customizable and efficient active devices to improve your fiber optic network. Active platforms help operators launch their transmission into fiber, run network diagnostics and provide a flexible configuration.

The GBC Active portfolio contains:

· Transponders

· Active chassis for card

· Tunable Dispersion Compensation Module

· EDFA Amplifiers

· SOA Amplifiers

To know more about our quadruple 25G transponder and see if it’s a good fit for your network, book a free consultation meeting with one of our engineers. You can also view all our xWDM systems here.
