|Chassis type||GBC Drawer|
|Client connector type||SC/APC|
|Insertion Loss||˂1,5 dB|
|Return Loss||˃55 dB|
|COM connector type||SC/APC|
Single circulator at a wavelength of 1550nm
GBC Photonics has passive circulators which allow to increase capacity of a single fiber. Thanks to the high-quality workmanship circulators have low insertion loss and high channel isolation. Drawer housing allow to save space, using dedicated chassis we can place up to 4 drawer devices in 1U.

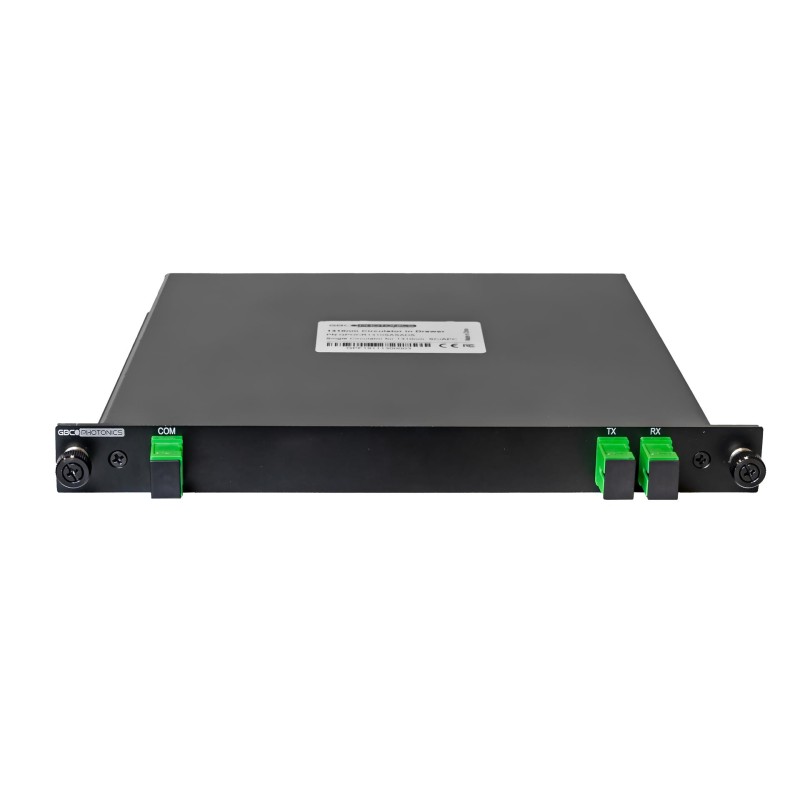

GPOCR1550SASADS Circulator allows to launch in a single fiber 1550nm transmission. Device works at wavelength of 1550nm and can change duplex transmission into simplex. Device has SC/APC ports.
1 SC/APC COM port, 2 SC/APC ports Tx and Rx
Drawer housing, ensure to save space and elegant design
