Management port
RJ45,USB
Length mm
482
Very important information for SRD programmer users – click to learn more.
| Management port | RJ45,USB |
| Length mm | 482 |
| Height mm | 88 |
| Depth mm | 240 |
| weight | 4 |
| Power type | 230V AC,48V DC |
| Relative humidity | 5|95 |
| Operating temperature | -40|85 |
| Mounting type | 19'' Rack |
| Number of slots | 7 |
| Chassis type | 2U 19" |
| Management type | WEB,SNMP |
| Redundant power supply | 2xAC, 2xDC, AC+DC |
2U 19" chassis with 7 slots for service boards, SNMP managed, 2xAC, 2xDC, AC+DC power supply
Active 2U chassis
GBC Photonics has in offer active devices which can be mounted in dedicated chassis. Modular system based on hot-swap cards allows for flexible selection of devices which reach customer's expectations and simple WEB management provides easy configuration and power diagnostic on line.

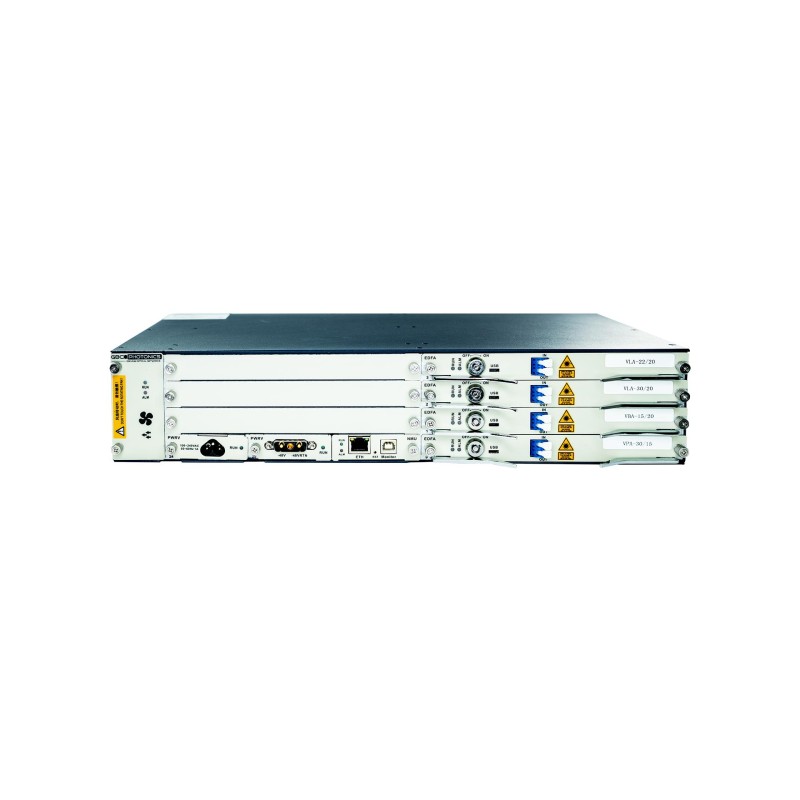

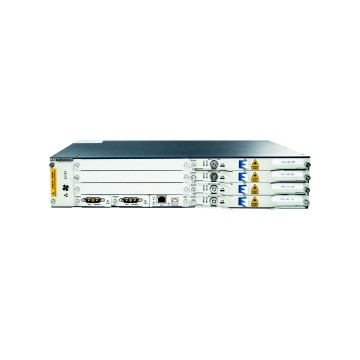

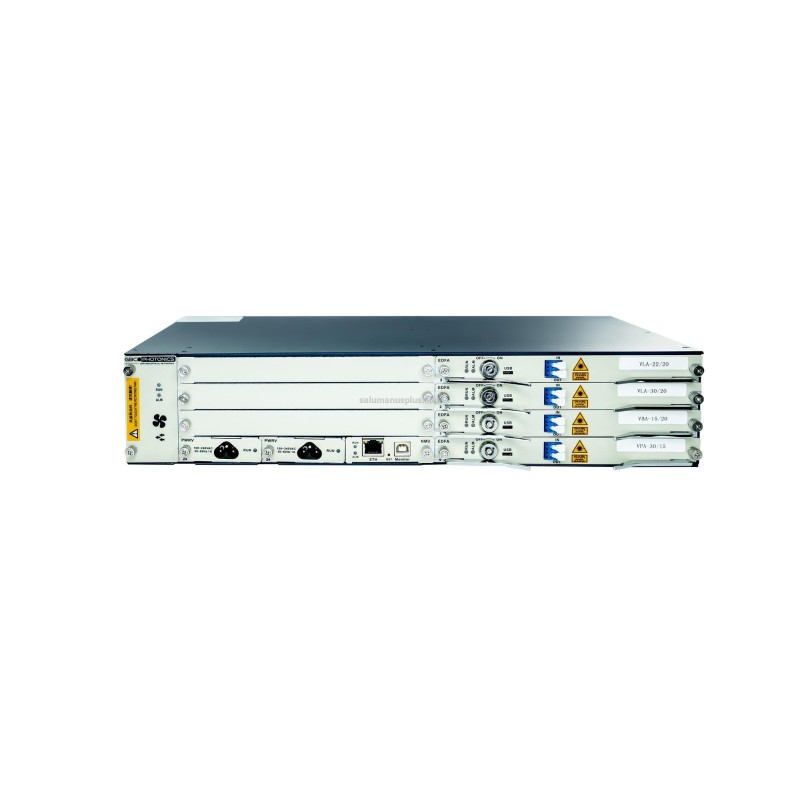

GPCH-7S2RU Chassis has 7 slots in which you can install GBC Photonic's active devices, two redundant power supplies AC or DC in any configuration, fan unit and management card with console port and RJ-45. Device is 2U and can be mounted in standard 19" Rack cabinet.
Ports
Console port, RJ-45 port
Housing
2U 19"
Let's get in touch.
Contact us.
We will be happy to answer your questions.
2U 19" chassis with 7 slots for service boards, SNMP managed, 2xAC, 2xDC, AC+DC power supply
