Connector type LC/UPC
Length mm 172
Height mm 20
Depth mm 215
weight 0,75
Operating temperature -5|60
Work mode APC
Type of amplifier Semiconductor Optical Amplifier
Input power -25~0 dBm
Maximal output power 8 dBm
Band 1295 - 1325 nm
1/2/4 channels Semiconductor Optical Amplifier, 8dBm Output, 100G LR4 SOA works in wavelength range 1295 to 1325 nm, LC/UPC, Pluggable Module for GBC Chassi

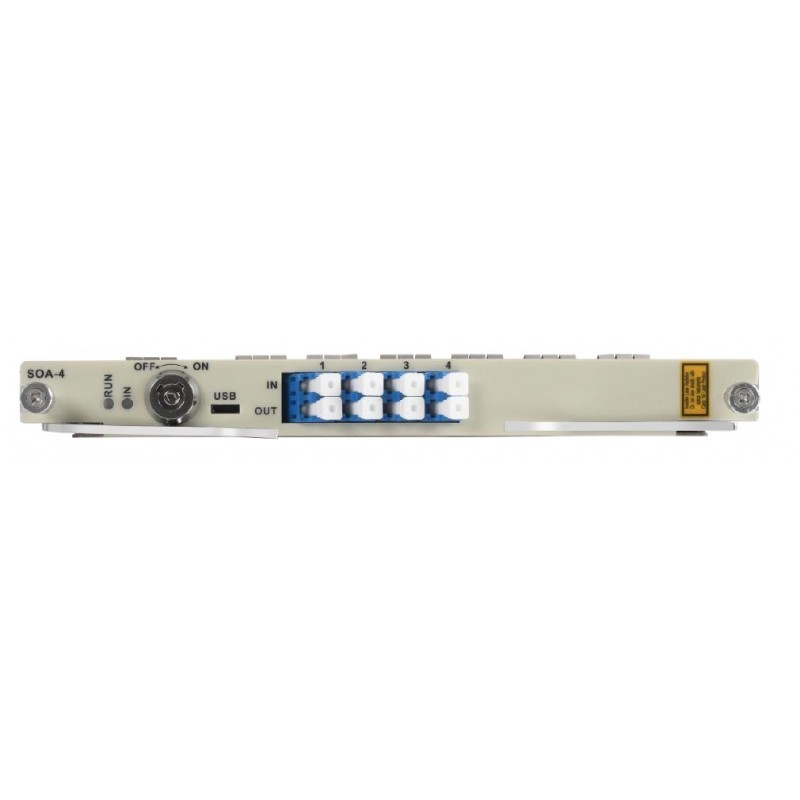

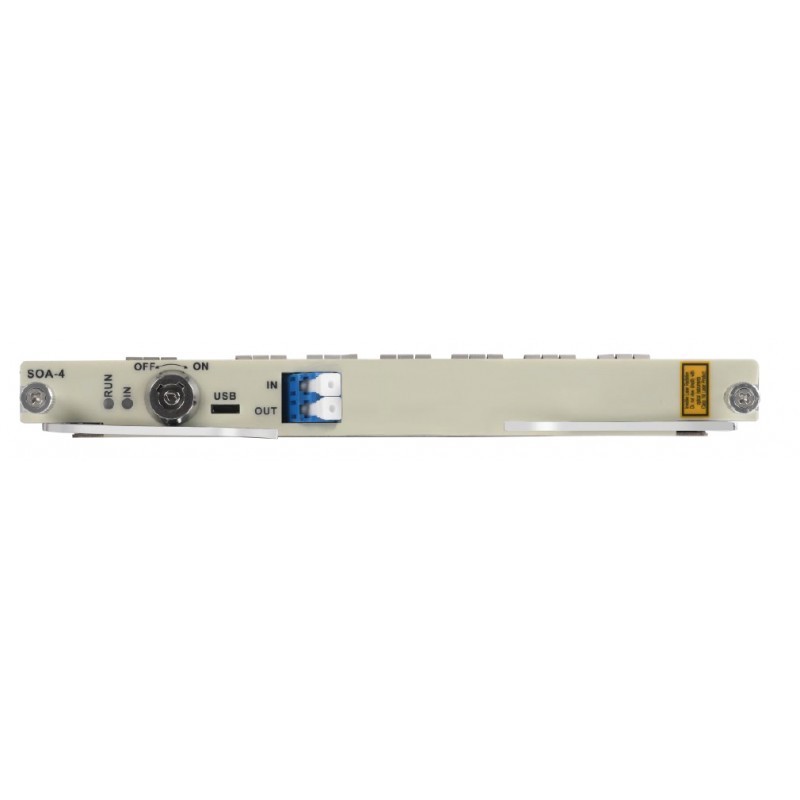

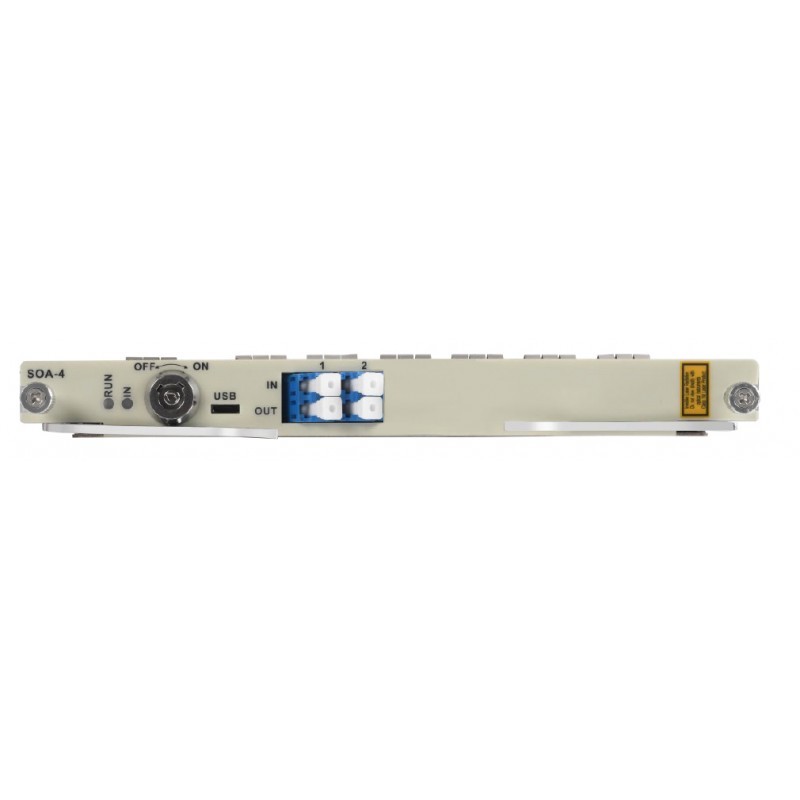

1/2/4 channel SOA amplifier

GBC Photonics has in offer active devices which can be mounted in dedicated chassis. Modular system based on hot-swap cards allows for flexible selection of devices which reach customer's expectations and simple WEB management provides easy configuration and power diagnostic on line.

GPAMP-SOA-20/8-xC SOA amplifier works in wavelength range 1295 to 1325 nm. The card takes up one slot in the dedicated GBC chassis and allows to amplify LR4 100G transmission. The ability to set output power pump allows you to adjust the output power to a maximum value of 8dBm.

Ports

LC/UPC ports

Type

APC
